USABILITY WITH A SENSE OF MODERN INTERIOR DESIGN

WASHROOM AMENITY LINEUP

CONCEPT

ELEGANT FLARE FOR YOUR WASHROOM

SARAYA's washroom amenity design takes a modern approach to interior design with a prominent black and white pattern reminiscent of Japanese brush strokes. Both restrained and expressive, the lineup adds an elegant flare to the washroom like a flower adds life to an empty room, creating a comfortable atmosphere.

The Sanilavo logo was designed by renown Japanese calligrapher, Mariko Kinoshita.

ARTIST PROFILE

MARIKO KINOSHITA

The calligrapher, Mariko Kinoshita, known by the pseudonym Shuusui Kinoshita, specializes in traditional calligraphy originating from China and Japan. She began studying this ancient art at the age of six. With her passion growing, Kinoshita enrolled in Daito University, a leader in calligraphy arts studies, to learn sophisticated techniques and train under established masters.

Training under one of the greatest calligraphers in Japan, Kinoshita soon devoted herself to displaying her works at exhibitions across Japan. After honing her skill, Kinoshita was receiving numerous awards for her technical and artistic calligraphy creations.

Kinoshita now plays an important role worldwide in the Asian calligraphy field as a representative female from Japan. In addition to her art, Kinoshita is often sought by companies for title letters. She can be seen giving live performances of her calligraphy art at festivals and recently at the major league baseball season opening. The areas of her creativity are boundless, and her skill and artistic style has even been recognized by magazines in the fashion industry.

For more information, go to Mariko Kinoshita's website.

CREATED FOR USABILITY WITH A SENSE OF MODERN INTERIOR DESIGN, THIS COMPACT AMENITY LINE UP IS A COMPLETE SOLUTION FOR CHANGING ANY WASHROOM INTO A HYGIENIC AND COMFORTABLE SPACE

PRODUCTS

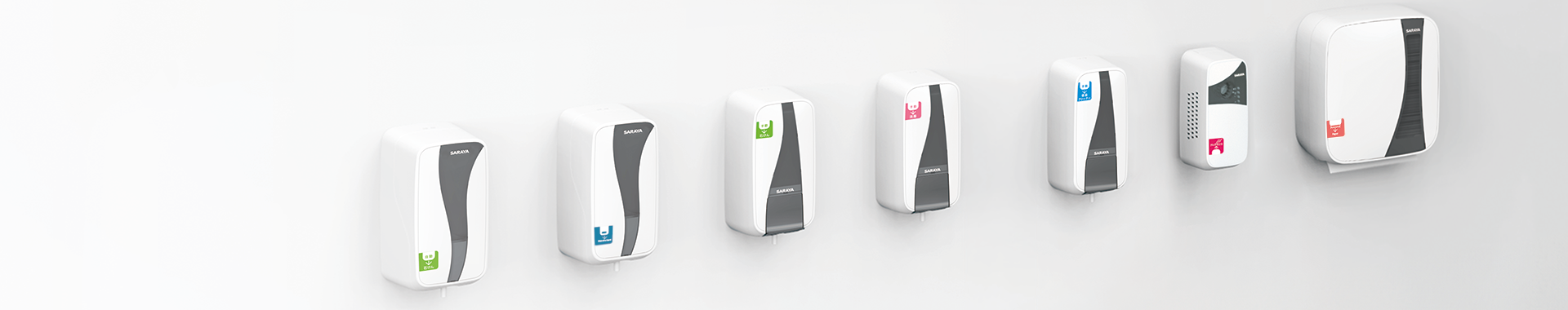

SANILAVO LINEUP

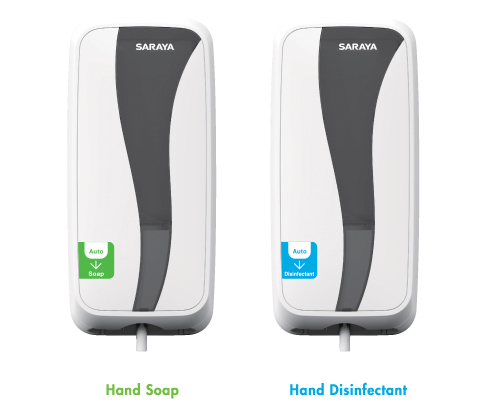

Automatic Dispenser UD-450

Automatically dispenses hand soap or hand disinfectant.

PRODUCT FEATURES

  • Modern usability and technology integrated in a compact unit
  • Touch free operation that reduces the risk of cross contamination
  • LED for feedback on operation and power
  • Liquid contents can be viewed without opening
  • Tamper resistant lock system

SPECIFICATIONS: UD-450

Items Details
Name/ Model Automatic Dispenser/ UD-450
Product Code 73715
EAN Code 489 702123 055 6
Compatible Agents • Hand soaps (Liquid/ Foam)
• Alcohol hand disinfectant
Capacity 450mL
Unit Weight Approx 530g
Unit Dimension W105 x D99 x H225(mm)
Material ABS: Case, Internal mechanical case, Window
Operation Method Sensor
Power Source C cell Alkaline batteries x 4 (Dispensing 18,000 times)
How to adjust Remove the spacer to adjust for proper dispensing volume.
Package Contents Instruction Manual x1, C cell Alkaline batteries x4, Key x1, Pictogram stickers x2, Double sided tape x1, Wet sheet for cleaning x1, Screw set (3 Screws, 3 Plugs) x1
Outer Carton Dimension W554×D365×H130(mm)
Quantity per Carton 6

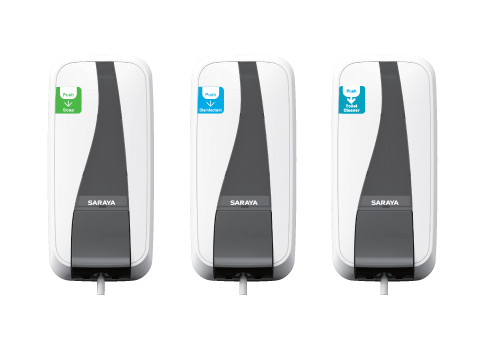

Manual Dispenser MD-450

Hand operation for simple and efficient hand hygiene.

PRODUCT FEATURES

  • Easy installation with no need for a power supply
  • Adjustable dispensing volume
  • Liquid contents can be viewed without opening
  • Tamper resistant lock system
  • Compact profile that can fit in any toilet or wash basin

SPECIFICATIONS: MD-450

Items Details
Name/ Model Manual Dispenser/ MD-450
Product Code 73716
EAN Code 489 702123 056 3
Compatible Agents • Hand soaps (Liquid/ Foam)
• Alcohol hand disinfectant
• Toilet Seat Cleaner
Capacity 450mL
Unit Weight Approx 310g
Unit Dimension W105x D88 x H224(mm)
Material ABS: Case, Window POM: Lever PP: Spacer
Operation Method Pushing the lever
How to adjust Remove the spacer to adjust for proper dispensing volume.
Package Contents Instruction Manual x1, Key x1, Pictogram stickers x 3, Double sided tape x1, Screw set (3 Screws, 3 Plugs) x1, Wet sheet for cleaning x1
Outer Carton Dimension W490×D365×H120(mm)
Quantity per Carton 6

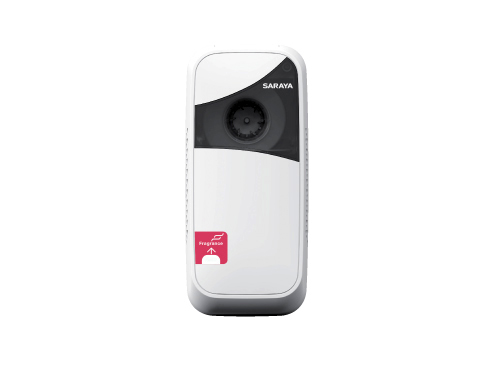

Air Freshener Diffuser AL-100

Air freshener diffuser programmed to release consistent fragrance from beginning to end.

PRODUCT FEATURES

  • Fan diffuses fragrance from gel type air freshener cartridge
  • Silent operation
  • LED indicated battery life
  • 30 days of consistent freshness

SPECIFICATIONS: AL-100

Items Details
Name/ Model Air Freshener Diffuser/ AL-100
Product Code 73806
EAN Code 489 702123 057 0
Compatible Agents Gel type air freshener
Capacity 150g
Unit Weight Approx 340g
Unit Dimension W97 x D87 x H214(mm)
Material ABS: Case, Window PP: Fan, Inner tray
Operation Method Press the button once and a 30 day program will start.
Power Source D cell Alkaline battery x 1 (Lasts up to 6 months.)
Package Contents Instruction Manual x1, D cell Alkaline battery x1, Key x1, Pictogram sticker x1, Double sided tape x1, Screw set (2 Screws, 2 Plugs) x1, Wet sheet for cleaning x1
Outer Carton Dimension W350×D245×H240(mm)
Quantity per Carton 6

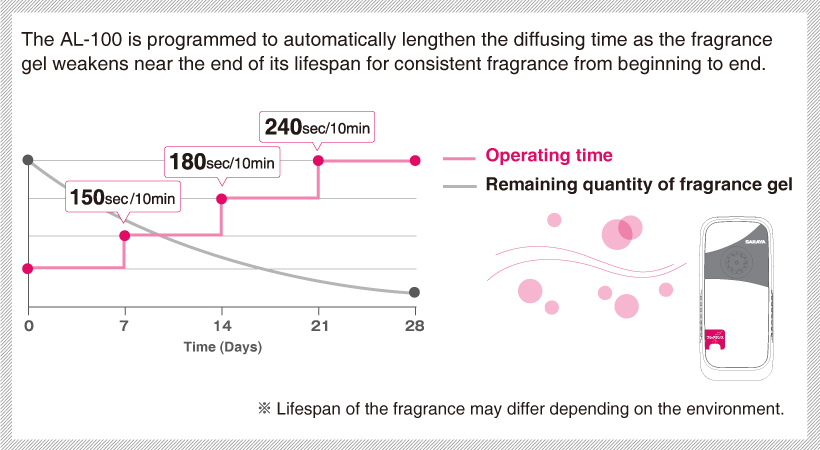

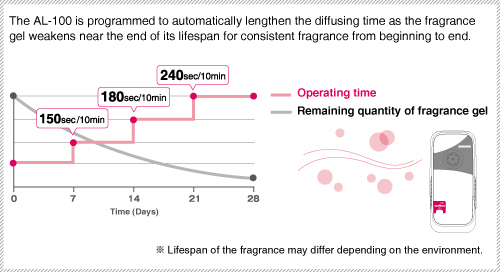

Hold down the reset button for two seconds to start the program.
The fan operates nonstop for the first 10 minutes.

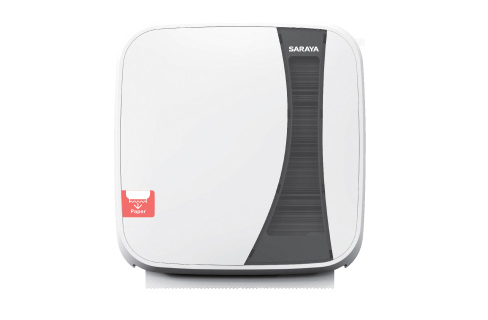

Paper Towel Dispenser PHG-400

High capacity paper towel dispenser that stocks up to 600 towels

PRODUCT FEATURES

  • Compatible with different sizes of paper towels （Width : 210~230mm, Height : 70~85mm）
  • Remaining sheets are visually available from the front window
  • Precision design to dispense one sheet at a time
  • Tamper proof lock system

SPECIFICATIONS: MD-450

Items Details
Name/ Model Paper Towel Dispenser/ PHG-400
Product Code 73807
EAN Code 489 702123 058 7
Capacity Towels can be filled up to 240mm in height
Compatible Paper Roll Size Width: 210～230mm
Depth: 70～85mm
Unit Weight Approx 720g
Unit Dimension W280 x D110 x H284(mm)
Material ABS: Case, Window
Package Contents Instruction Manual x1, Key x1, Pictogram stickers x1, Double sided tapes x2,Screw set (4 Screws, 4 Plugs) x1, Wet sheet for cleaning x1
Outer Carton Dimension W885×D300×H285(mm)
Quantity per Carton 6
